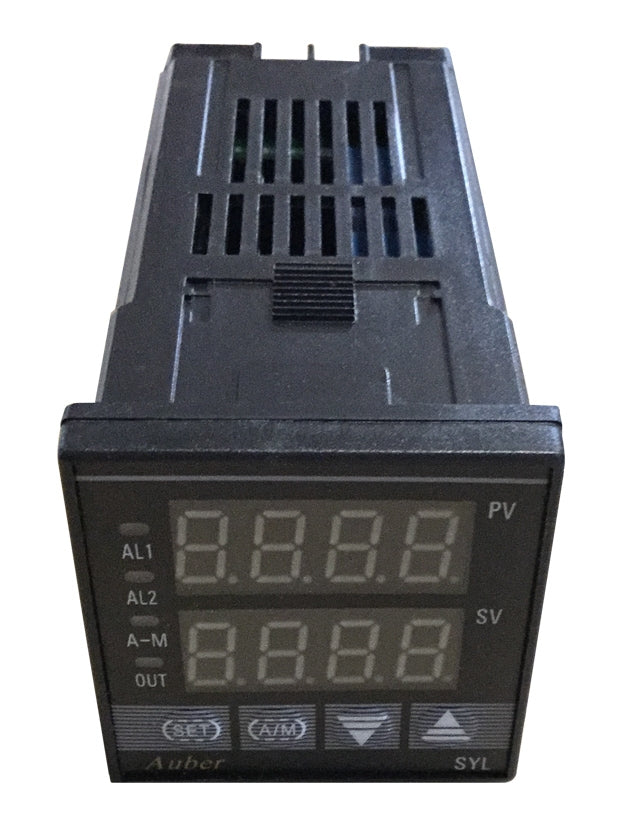

Tabletop Furnace RF–Programmable PID Temperature Controller (Ramp/Soak Model)

Tabletop Furnace RF–Programmable PID Temperature Controller (Ramp/Soak Model)

Precision Process Control. Fully Programmable Performance.

Take command of your temperature profiles with the Tabletop Furnace RF–Programmable PID Controller, a professional-grade control solution offering up to 30 programmable ramp/soak steps. Whether you’re working with a RapidFire, Hi-Temp, XT, or XL series furnace, this controller provides the accuracy, automation, and flexibility you need for consistent, repeatable results across a wide range of high-temperature processes.

Built on proven industrial PID technology, this controller is available in multiple output configurations — including relay, SSR output, or built-in SSR — allowing seamless integration with your Tabletop Furnace or other heating systems.

🔥 Advanced Ramp/Soak Programming

The RF–Programmable PID Controller goes beyond simple on/off or static setpoint control. It lets you automatically vary temperature over time, enabling complete control over heating, holding, and cooling phases.

With up to 30 programmable steps, you can:

• Ramp temperature up or down at a precise rate.

• Soak (maintain) temperature for a specified duration.

• Trigger alarms or relays at defined steps to activate other equipment.

• Create loops, holds, or stops for repetitive or conditional operations.

This flexibility makes it ideal for applications requiring tight process control — from metal clay firing and glass annealing to heat treating, sintering, and laboratory testing.

⚙️ Smart PID Control with Fuzzy Logic

At its core, the RF–Programmable PID Controller uses a fuzzy-logic enhanced PID algorithm, continuously learning and adjusting to maintain target temperatures with exceptional precision. The result: faster stabilization, minimal overshoot, and steady-state accuracy within ±0.2% of full scale.

This technology ensures reliable performance across a wide range of sensor types, load sizes, and environmental conditions — giving you the same consistency batch after batch.

⚡ Choose the Right Model for Your Setup

The RF–Programmable PID Controller series includes three model options tailored to your specific control needs:

SYL-2342P (Relay/Contactor Output)

• Built-in relay rated for 10A @ 120VAC (up to 1,200W load).

• Can control small heaters directly without an external relay.

• Also capable of driving larger external contactors or relays.

• Supports 17+ sensor types (TCs, RTDs, DC inputs).

• Ideal for compact setups and standalone heating elements.

SYL-2352P (External SSR Control Output)

• Provides 12VDC output signal for controlling external solid-state relays (SSR).

• Recommended for higher-power Tabletop Furnace models or systems requiring precise, isolated switching.

SYL-2372P (Built-In SSR Output)

• Features an integrated 2A zero-crossing SSR (20–240VAC) for quiet, stable switching.

• Reduces electrical noise caused by inductive loads.

• Designed for smaller systems, up to 300W @ 110VAC.

• Ideal for compact furnaces, test rigs, or light-duty automation.

Each model delivers the same programmable ramp/soak functionality and core PID precision — you just choose the output style that best matches your load or setup.

📊 Core Features

• 30-Step Ramp/Soak Programming: Customize complex temperature profiles with ease.

• PID Control with Fuzzy Logic: Maintains tight control across varying load conditions.

• Dual Alarm Outputs: Trigger based on temperature or program steps; interlock other equipment for safety.

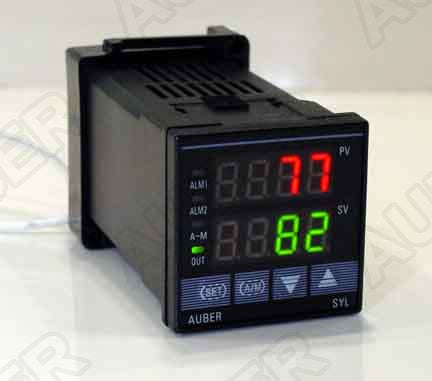

• High-Visibility LED Display: Large, dual-line interface shows process and setpoint temperatures.

• Selectable Units: Fahrenheit (°F) or Celsius (°C).

• 0.2% Full-Scale Accuracy: Industrial-grade precision for reliable repeatability.

• Multiple Input Types: Thermocouples (K, J, E, T, S, B, N, WRe), RTDs (Pt100, Cu50), or DC voltage/current inputs.

• Programmable Security Access Levels: Protects system parameters from unintended changes.

• Non-Volatile Memory: Saves programs and settings even after power loss.

• Compact 1/16 DIN Design (48 × 48 mm): Fits easily into Tabletop Furnace control panels or enclosures.

🧠 Built for Tabletop Furnace Applications

This controller is the same technology we use in our Tabletop Furnace RapidFire, Hi-Temp, XT, and XL units — trusted by jewelers, metalworkers, labs, and educators worldwide. Its precision control and flexible programmability make it the perfect upgrade or replacement for any system requiring:

• Custom temperature profiles

• Precise ramping and holding

• Automation-ready outputs

• Reliable 24/7 operation in demanding environments

From studio artists to industrial engineers, it gives every user the tools to achieve repeatable, professional-grade thermal processes.

⚡ Technical Specifications

💬 Why Choose Tabletop Furnace’s RF–Programmable PID

• Designed and supported by Tabletop Furnace Company for seamless integration.

• Ideal for upgrading legacy controllers or replacing standard units with programmable flexibility.

• U.S.-based support and service team available for configuration and troubleshooting.

• Industrial-grade reliability and long-term performance in both hobbyist and commercial settings.

🧩 Perfect For:

• RapidFire Pro-Series kilns

• Hi-Temp Bench Furnaces

• XT and XL Series Tabletop Furnaces

• Custom-built or retrofit furnace systems

• Laboratory ovens, heat treatment, and annealing processes

🛠️ Included Resources

• [RF–Programmable PID Controller Manual (PDF)]

• [Ramp/Soak Programming Guide (PDF)]

• [Comparison Chart for PID Models]

✅ Key Benefits

• 30-step programmable temperature control

• Choice of output types for any load configuration

• High accuracy and stability with fuzzy-logic PID

• Rugged construction and intuitive operation

• Excellent for kilns, ovens, and process automation

Upgrade your furnace or process system today with the Tabletop Furnace RF–Programmable PID Controller — and take full control of every ramp, soak, and cycle with confidence.
